Looking for help with Form Data Body API example

Eggplant Functional
1

Have an API that can be used to attach files (into ClickUp) and trying to implement into my EPF code. Trying with the basics I ended up using POSTMAN and got it to work but unable to duplicate it in EPF. I am 99% sure its the formdata part I am not getting the format or details right

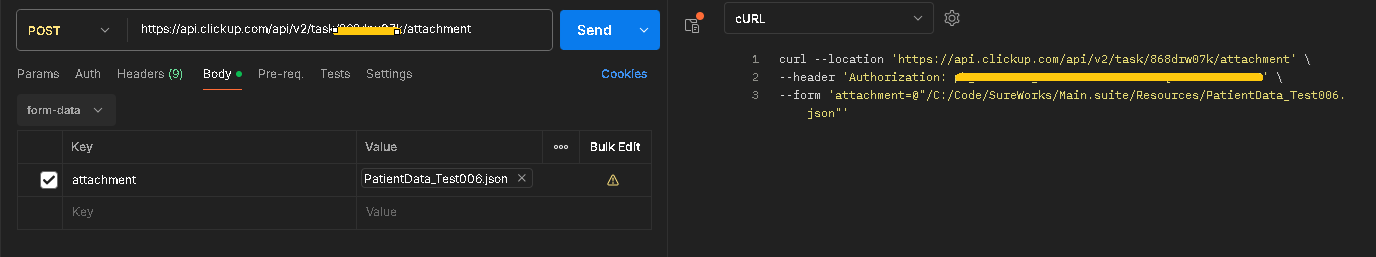

In POSTMAN I wish Sensetalk was in there for a code snippet but it is not. I am showing the CURL snippet but not sure if this is of any help

image1376×257 12.4 KB

The documentation from ClickUp isnt helping me much
https://www.postman.com/clickup-api/clickup-public-api/request/uch46ml/create-task-attachment?tab=overview

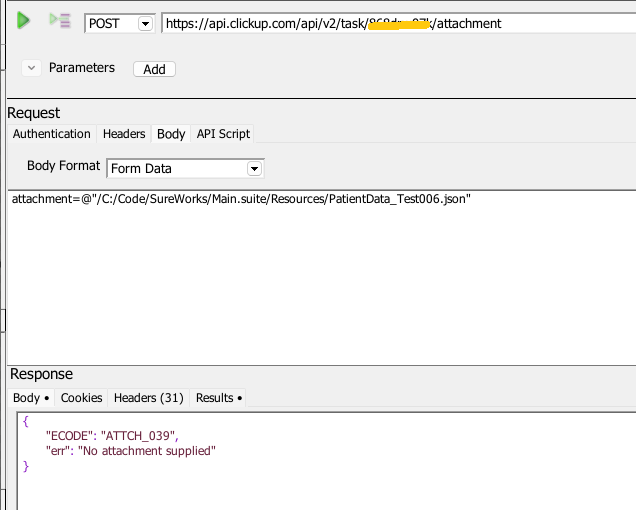

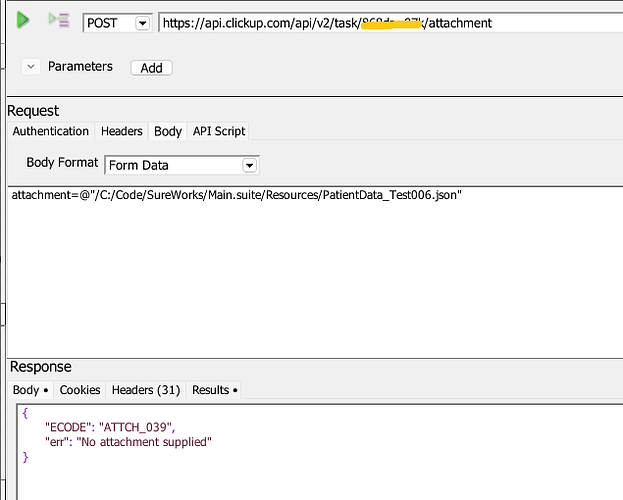

I know this isn’t right but in short showing what I have been trying to do

image636×510 23.6 KB

2

Was able to do outside and API script using the post multipart command. I might still play with moving this to an API script if anyone has ideas on how this might copy over?

1 Like
3

Hello,

To upload a file to ClickUp via EPF (SenseTalk), structure a multipart/form-data POST with headers and file content like this:

put “your_api_key” into apiKey
put “your_task_id” into taskID
put “C:/Path/To/Your/File.txt” into filePath

put “–boundary123” & return into body
put ‘Content-Disposition: form-data; name=“attachment”; filename="’ & filePath’s short name & ‘"’ & return into body
put “Content-Type: application/octet-stream” & return & return into body
put file filePath into fileContents
put body & fileContents & return & “–boundary123–” & return into body

put [
method:“POST”,
headers:[
“Authorization”: apiKey,
“Content-Type”: “multipart/form-data; boundary=boundary123”
],
body:body
] into request

put post & taskID & “/attachment” with request into result
put result.

File path is correct

Boundary matches in body and header

File is read correctly

Best Regard,
Helen

4

Hey @GTPWilks,

here is a version I have used in the past next to the multipart (which is much simpler from my perspective).


set user to "admin"
set id to "123"
set myheader to {
	"name":"id",
	"contents":id
}
set myBody to {
	name:"id",
	contents:user
}


set myURL to "https://postman-echo.com/post"
put APostRequest(httpmethod:"POST",Url:myURL,requestbody:myBody, requestheaders:myHeaders) into ApiResults

log jsonformat(ApiREsults)
5

Hey @Karsten,
i am trying to post a zip file using below code, this doesn’t work.
My Code:

* Post multipart {fieldName:"attachment",filename:fileNameForUpload,Body: zipFilePath} to URL MyURL with headers headers1

Headers:

put {
	"Authorization": "Basic " & encodedCredentials,
	"X-Atlassian-Token": "no-check"
} into headers1

I also tried this code, but no luck
put APostRequest(httpmethod:"POST",Url:myURL,requestbody:myBody, requestheaders:myHeaders) into ApiResults

6

Hey @liki7411 ,

Post multipart {fieldName:"attachment",\
			filename:fileNameForUpload,\
			Body: file zipFilePath as data} \
		to URL MyURL with headers headers1

See above. Can you add file before your variable zipFilePath and afterwards as data

here is the docu URL Transactions and Formatting | EPF Docs

1 Like
7

@Karsten yes i have tried that as well , post multipart {fieldName:"attachment",filename:fileNameForUpload,Body: file zipFilePath as data} to URL jiraURL with headers headers1 . I get blank response for this too. I checked file size which is - 761113 bytes

8

Hey @liki7411 ,

  1. Does it work with a non zip file? txt, png? Can you try ?
  2. Can you share the Jira documentation, API endpoints and describe a bit more what you want to achieve?
  3. Do you know which Technical Consultant is assigned to your account? Can you reach out to her/him directly to support handson in a webmeeting.
  4. Did you verify its working via Postman or curl on cmd/terminal?
  5. Can you share the full scripts and add placeholders for credentials and your Jira URL ?
    Cheers,
    Karsten
1 Like
